On the mobile app, go to Main Screen > and tap ADD ROBOT
Tap SCAN QR CODE or ENTER ID MANUALLY (only do this if the camera can't scan the QR code on the Annaboto)
You will get a notification to join the "annaboto" WiFi network, please press CANCEL. You may have to do this a few times or wait until the mobile device gives up on trying to connect to the Annaboto.
On the following screen, please enter the WiFi name and password carefully. These need to match exactly.
Once the information is input, press the LEGACY QR button.
The App will generate a QR code that you have to show to the camera on the light - the screen will dim, please let it stay dim so the camera can have a better chance of recognizing the QR code.
Now, press and hold the button on the Annaboto for 10 seconds to start the WiFi scanning process

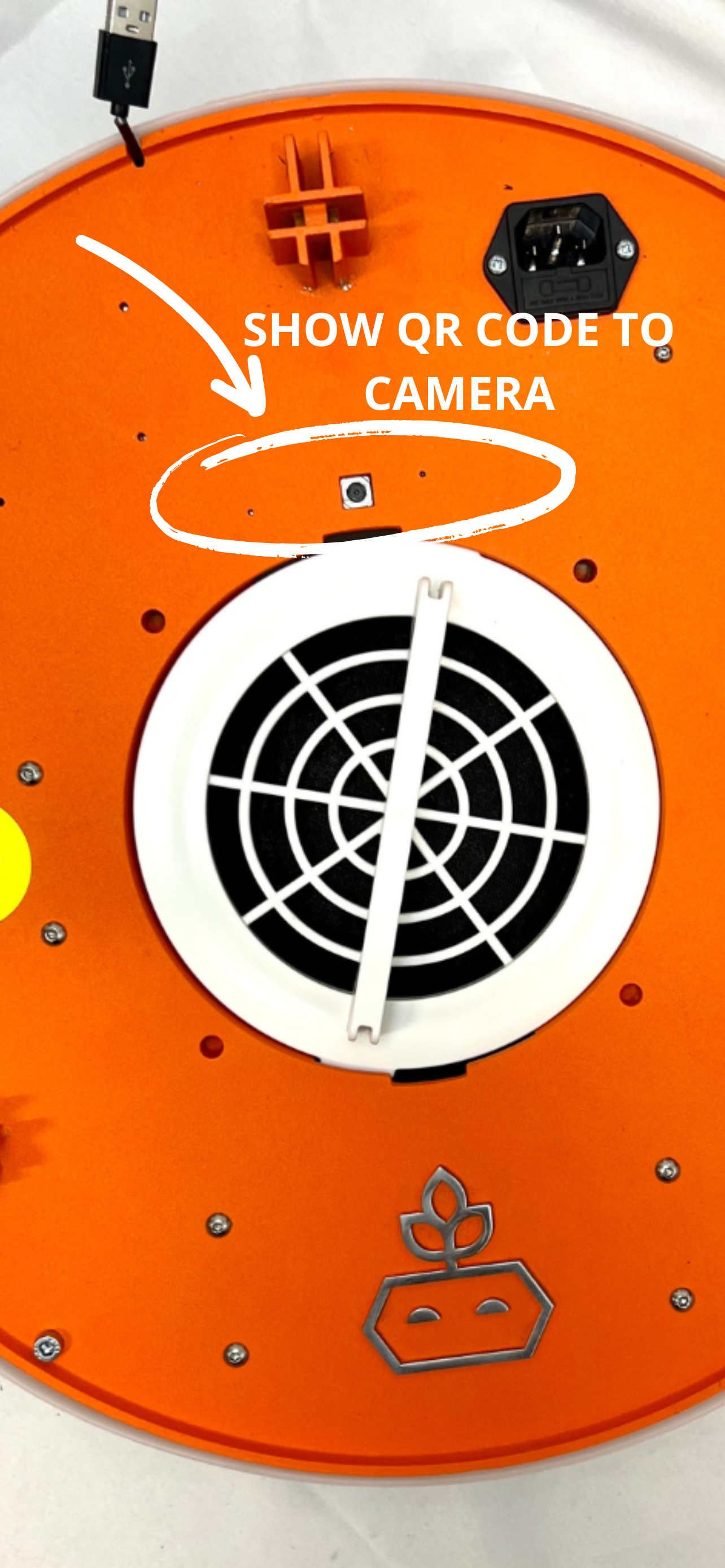

Place the phone with the QR code under the light (in the center-back) about 8-12 inches below the light (the phone screen will dim, this is OK)
Hold for ~20 seconds or until the LED on the front turns cyan. Cyan means it recognized the QR code and will try to configure the WiFi. If all is well, the LED will turn White and stay White. If it goes back to blinking purple, something might be wrong (usually a caps issue or maybe there was an extra space somewhere).
Once the light is White, wait 10 seconds and turn OFF the Annaboto, then turn back ON. The machine will boot and the button in the front should be White. This means that the connection was successful and the machine is communicating with the cloud. Technology!
You are all set!
Note: Your phone must be connected to the same wifi that you are using for your Annaboto
If you ever need to reconfigure the WiFi, press the front button for ~5 seconds until the light blinks magenta and repeat the steps above
